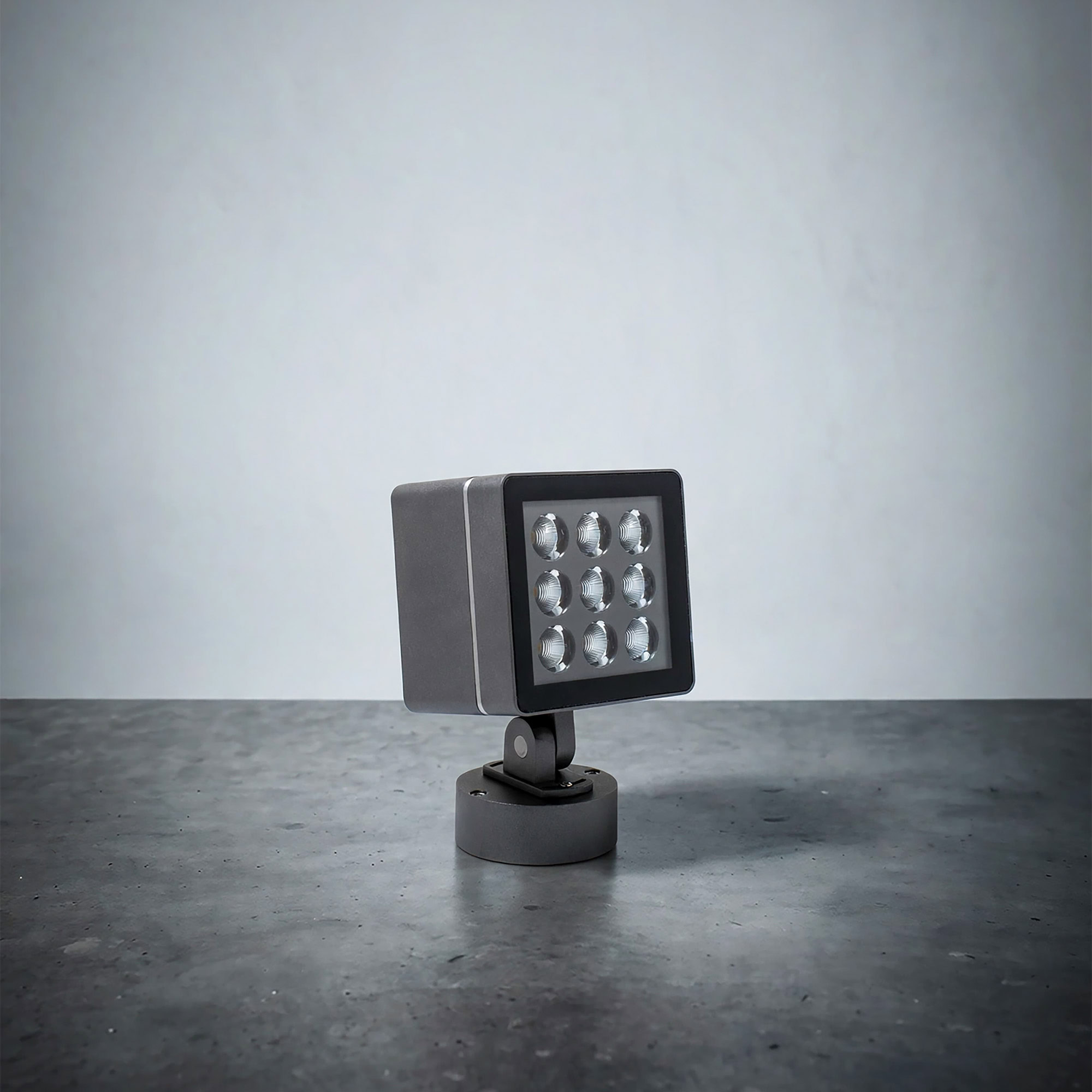

LED projector for wall, ceiling and floor installation using dowels, suitable for lighting outdoor areas, gardens, parks and car parks. The optical compartment, the arm and the base are made of anodized aluminum alloy and subsequently powder coated to provide high resistance to atmospheric agents and UV rays, it acts as a radiating surface and guarantees excellent heat dissipation. The projector can be adjusted in the vertical plane ±90° by means of a painted steel bracket and provided with mechanical blocks which guarantee stable pointing of the light beam. Tempered extra-clear protective front glass (thickness 5mm) fixed by means of annealed silicone sealing gaskets to prevent the formation of deposits which would considerably reduce the performance of the appliance. Screws in stainless steel with a high molybdenum content. IP65 protection on both the product and the cable using IP65 connectors.
Source
LED Chip On Board (COB) technology.
Optics
Roto-symmetrical optics available in various openings (see table opposite) treated by high vacuum metallization and protected by a tempered extra-clear safety glass screen.
Power supply
Electronic power supply integrated in the body of the fixture, available in the standard version (on-off). Power supply 220-240Vac 50 / 60Hz.
Note
We recommend the use of the SPD protection device, supplied by us upon request.
FAQ
Can it be placed outside?
The product can be installed outdoors, but it is necessary that the product and the connection system have an adequate IP protection rating.
