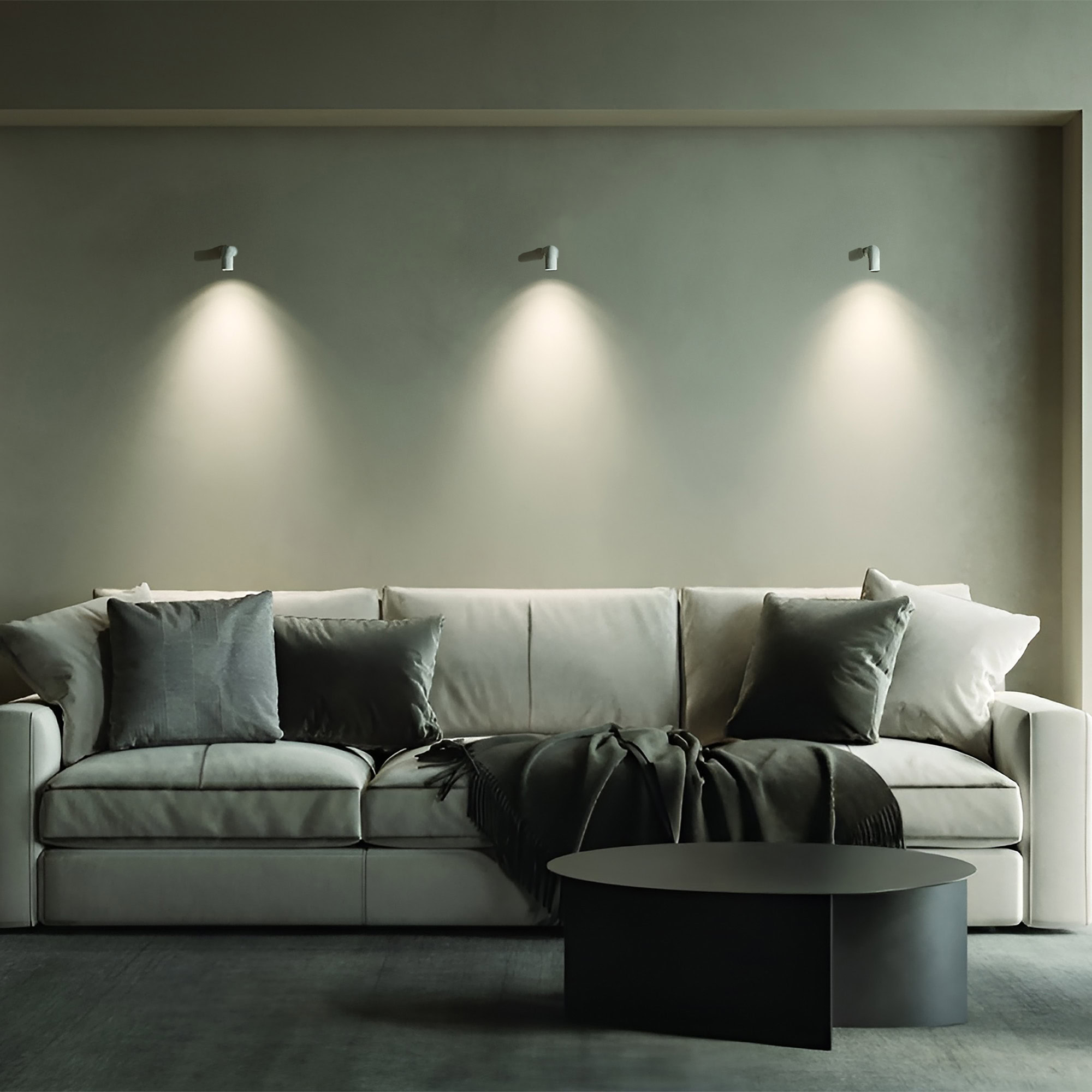

Direct emission LED fixture for wall installation. Suitable for enhancing elevations and cladding materials, the minimal design makes LOGAN perfectly integrated with any type of architecture. Lamp body made of anodized aluminum alloy and subsequently powder coated to provide high resistance to atmospheric agents and UV rays, it acts as a radiating surface and guarantees excellent heat dissipation. Tempered and silk-screened extra-clear protective front glass (thickness 5mm), fixed by means of resin, in a coplanar position to the body of the appliance to allow dirt to flow away, avoiding the formation of deposits which would significantly reduce the performance of the appliance. Screws in stainless steel with a high molybdenum content. Sealing gaskets in annealed silicone.
Source
Chip On Board (COB) LED technology.
Optics
Rotosymmetrical optic (see datasheet) treated by high vacuum metallization and protected by a screen in tempered extra-clear safety glass fixed by means of resin.
Power supply
Electronic ballast integrated in the body of the fixture, available in the standard version (on-off). Power supply 220-240Vac 50/60Hz.
Note
We recommend the use of the SPD protection device, supplied by us upon request.
FAQ
Do you provide connectors for this product?
Yes, the product is supplied with the appropriate connectors it needs.
Can it be placed outside?
The product can be installed outdoors, but it is necessary that the product and the connection system have an adequate IP protection rating.
